Del Castillo® Roofing
LOCATION
Bernardos – Spain
PRODUCT

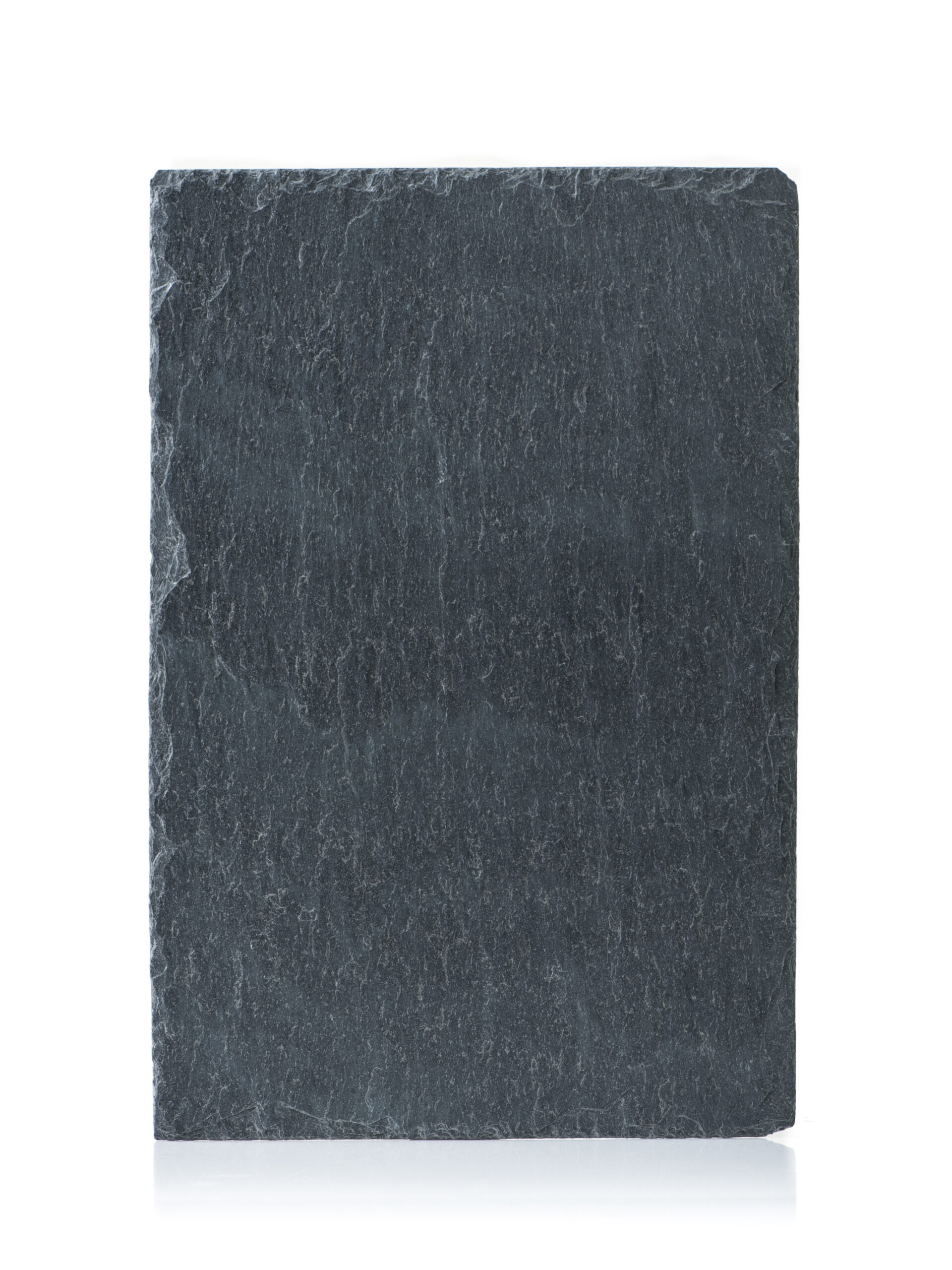

Roofing & Cladding slates
COLOR
True un-fading SILVER GRAY
CHARACTERISTICS
First Spanish quarry, producing since 1559.
More than a slate, it is a phyllite.
Best ASTM laboratory test results in the world.
Pyrite free.
Perfect match for Buckingham slate.
Exclusive supplier of historical & royal buildings in Spain.
FORMAT
Metrics & Imperials.
From 30cm x 20cm (12” x 08”) up to 50cm x 30cm (20” x 12”)
THICKNESS AND WEIGHT
6-7mm (1/4”) 46 kgs/m2 875 Lbs/square
9-10mm(3/8”) 66 kgs/m2 1275 Lbs/square
Slate can be supplied either holed or unholed depending upon the roofing system chosen
DEL CASTILLO® is produced from one source of origin.
Unique stone for unique costumers. Exporting world wide.
The quality control of be natural® staff in the quarry guarantees a perfect selection of your order before the colletion.
We control color, thickness, size and labels.
be natural® transport your order from the quarry up to your doorstep, wherever you are in the world.
SLATE FOR DISCONTINUOUS ROOFING AND CLADDING UNE-EN 12326-1 ASTM C-406
Dimension and Dimensional Variation
Complies
Nominal Thickness and Variation
Complies
Mechanical Resistance, Characteristic MoR
Transverse: 23.10 N/mm2 / Longitudinal: 39.17 N/mm2
Mechanical Resistance, Mean Modulus Rupture
Transverse: 31.67 N/mm2 / Longitudinal: 51.94 N/mm2
Carbonate Content
0.28% Complies
Water absorption
Complies with code W1 0.37%
Thermal Cycling
T1 Complies
Sulphur Dioxide Exposure
S1 Complies
Non-Carbonate Carbon Content
0.07% Complies
Release of Dangerous Substances
None in conditions of use as roofing or external cladding
External Fire Performance
Deemed to satisfy
Reaction to Fire
Deemed to satisfy CLASS A1
Fireproof
Waterproof
Resistant to pollution
Long lasting
100% Natural
Environmentally safe
Hand selected
Low maintenance
Find out more.
Contact us
Galicia – Spain
DEL CASTILLO® slate is certified by the European and American laboratories.
